VPDU 110
Video Processing Board

The Vision4ce VPDU, Video Processing Distribution Unit 110 is a standalone video processing board for embedded video and image processing applications which is designed to host the Vision4ce VMS software. The VMS software includes the field proven DART video tracking software. The VPDU is based on a NVIDIA TX2 Jetson embedded processor which incorporates a multi-core ARM processor and powerful GPU. A variety of video interfaces are available based on customer requirements.

Description

The VPDU is a high-performance standalone video processing board. Video interfaces are provided for HD and SD video in both analog and digital formats. The primary host interface is through an Ethernet port. Multiple serial links are also provided. Please refer to the specifications tab for DCX product details or contact us directly at info@vision4ce.net or call us at Tel: +1.410.384.9181 . Please also check out our other rugged PC and video tracking products. We support customization and quantity discounts.



Architecture

The VPDU 110 uses a FPGA for high speed, low latency video interfacing and processing combined with the flexibility of the Jetson embedded processing which includes the following resources:

  • • 256 Core NVIDA Pascal GPU
  • • DUAL Core NVIDA Denver 2 64bit CPU
  • • QUAD Core ARM Cortex-A57 MP Core
  • • 8GB 128-bit LP DDR4 Memory

The VPDU processes two concurrent streams of standard definition or high definition video selected from the multiple analog and digital video inputs. The output video is genlocked to the input video and is comprised of low latency video from the selected input combined with processed video and graphics from the Jetson.

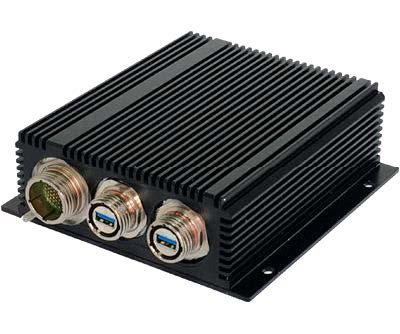

Enclosure

A rugged enclosure is available for the VPDU. The enclosure includes an input power supply which allows the VPDU to be powered directly from vehicle and aircraft power sources.

Power
  • • 256 Core NVIDA Pascal GPU
Expansion
  • • 1 x mini PCIe slot, up to 2 additional Ethernet ports
Mechanical
  • • Dimensions 194 x 156 x 57mm (7.64” x 6.14” x 2.24”)

Options and Applications

Applications

• Security and surveillance
• UAV & UGV
• Manned platforms- Sea, Air, Land

Available Video Input Options

• 2 x SD analogue video inputs
– 1.0V peak to peak into 75 Ohm
– CCIR, RS170, PAL or NTSC
• 2 x HD analogue video inputs
– 1.0V peak to peak into 75 Ohm
– YPrPb
• 4 x HD digital video inputs – SD-SDI, HD-SDI, 3G-SDI
– 480i60,576i50,720p50/59.94/60,1080p25/29.97/30, 1080i50/59.94/60, 1080p50/59.94/60)

Available Video Output Options

• 4 x SD/HD analogue video outputs
– 1.0V peak to peak into 75 Ohm
– CCIR, RS170, PAL, NTSC or YPbPr
• 4 x HD digital video outputs
– SD-SDI, HD-SDI, 3G-SDI
– 480i60,576i50,720p50/59.94/60, 1080p25/29.97/30,1080i50/59.94/60, 1080p50/59.94/60
• Selectable symbology overlay on two outputs

Available Data Interfaces

• 1 x Ethernet, 1000 Base-T
• Serial
– 1 x RS232, 3 x RS422
• 1 x USB 2.0
• 1 x CANbus
