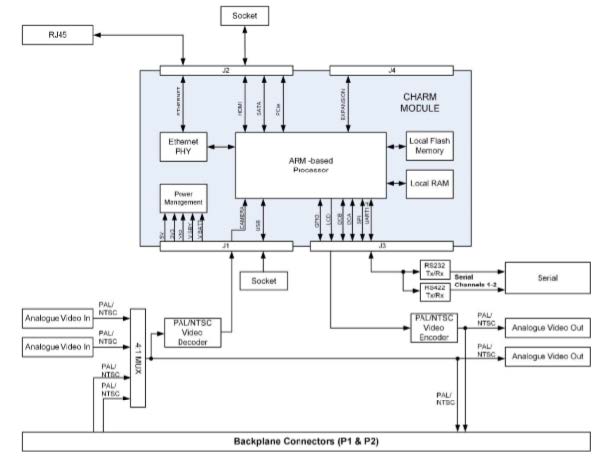

image of CHARM 6U tracking interface chart
Tank that uses CHARM Module graphic of board image
Tanks that use CHARM Module graphic of board image

CHARM-3U
3U VME Conduction Cooled Video Tracker

The Vision4ce CHARM 3U video tracker uses the DART (Detection & Acquisition, with Robust Tracking) detection and target tracking software hosted on an embedded multicore ARM processor board for video tracking and image processing applications.

Download Product PDF

CHARM-3U
Video Detection & Tracking

A video tracker analyzes video image sequences from a sensor system (one or more cameras), mounted on a servo controlled pedestal (platform) to keep the camera pointing at the nominated person or object. In this context a Tracker has two primary processing functions.
• Detecting and locating objects of interest in the video image (object location).
• Controlling the platform (Pan and Tilt) position and rate such that the camera follows the designated object (Pan and Tilt Control).



CHARM-3U Features:

Key Features
  • • Multiple object detection and tracking
  • • Centroid & edge measurement
  • • Feature based correlation algorithm
  • • Moving object detection
  • • Adaptive background removal
  • • Automatic coast
  • • Grey level invariant algorithms
  • • Robust clutter rejection



Interfacing
  • • Two analog video (NTSC, RS710, PAL or CCIR) inputs
  • • Host interface through RS-232 or RS422 serial interfaces
  • • Direct interface to sensors and Pan & Tilt platform through RS-232 or RS-422 serial interfaces
  • • Two analogue video (NTSC, RS710, PAL or CCIR) video outputs with selectable symbology overlay
Additional Image Processing Options
  • • Electronic image stabilization
  • • Image enhancement
Applications
  • • Security and surveillance
  • • UAV & UGV
  • • Manned vehicles
  • • Automated video analysis

CHARM-3U Options and Applications

The CHARM 3U is a high-performance video tracker that meets the mechanical requirements of a conduction cooled single height Eurocard (DIN41494).

Interfaces

• Two analogue video inputs
– 1.0V peak to peak into 75 Ohm
– 625 / 525 line
– CCIR, RS170, PAL or NTSC
• Two analogue video outputs
– 1.0V peak to peak into 75 Ohm
– 625 / 525 line
– CCIR, RS170, PAL or NTSC (depending on input)
– Selectable symbology overlay
• Two bidirectional serial interfaces
– RS232 or RS422
– Asynchronous
– Baud rate variable up to 115,200

Connectors

• Front panel
– 1x 25 way Micro ‘D’ Plug
○ 2x serial interfaces
• 4x SMA Jacks
– 2x video inputs
– 2x video outputs
• Rear Connector
– 96way DIN 41612 Type C
○ 2x serial interfaces
○ 2x video inputs
○ 2x video outputs
○ Power
• 96way DIN 41612 Type C for VME

Power

• +5V, < 12 watts

Mechanical

The CHARM 3U conforms to the 19” rack specification (DIN 41494) as a single Eurocard PCB module (3U x 4HP).

Environmental

• Copper side strips provide surfaces for conduction cooling via wedge locks.
• Temperature
– Operating -40C to +71C
– Non-operating -55C to +95C
• Thermal shock (operating) > +/- 5C per minute
• Humidity
– 5% to 95% non-condensing
– Optional conformal coating available

Designed, Manufactured and Technical Support in the UK. US and UK technical support.
