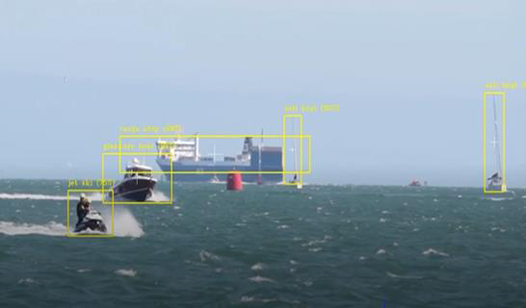

image tracking and identifying boats at sea
Video Tracking hardware offered by Vision4ce
image of CHARM-100 tracking interface architecture

CHARM 100NX

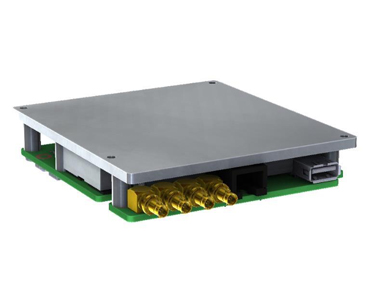

Video Processing Board 100mm x 100mm x 20mm (3.94” x 3.94” x 0.8”)

The Vision4ce CHARM-100NX is a standalone video processing board for embedded video and image processing applications, which is designed to host the video capture and image processing software. The software available includes FrameWorkx video capture and the field proven DART video tracking software. The CHARM-100NX is based on a NVIDIA Xavier embedded processor which incorporates a multicore ARM processor and powerful GPU. Video interfaces are provided for 6G, 3G, HD and SD video in digital formats.

Download Product PDF

CHARM-100NX

The CHARM-100NX uses an FPGA for high speed, low latency video interfacing and processing combined with the power of the Xavier NX embedded processing which incorporates a Hexa core ARM CPU, 384 CUDA core + 48 Tensor core NVIDIA GPU and a video accelerator for video encode/decode. The Xavier NX provides more than 3 times the AI processing performance of the earlier Jetson TX2 processor and processes two concurrent streams of standard definition or high definition video, selected from the multiple video inputs. Other image processing applications available include:



CHARM-100NX Features and Variants:

Video Interfaces

The CHARM-100NX has the following video interfaces

Video Inputs

• 2 x SD/HD/3G/6G SDI

Video Outputs

• 2 x SD/HD/3G/6G SDI
Video mezzanine card provides a wide range of expansion options which include CameraLink, CoaxPress and HD component video I/O Expansion options

VMS Software

The CHARM-100NX hosts the Vision4ce GRIP View software which is a comprehensive real time video management software suite for video an image processing.
The software capabilities with the CHARM-100NX are:
• Video detection & tracking using Vision4ce DART library
• Video streaming
– MPEG-TS (STANAG 4609)
The following optional capabilities are also available: • Video streaming
– RTSP
• Video compression and recording – H.264, M-JPEG
• Electronic image stabilization
• Panoramic image formation
• Image enhancement
• Camera control
• Servo platform control
• Remote control over IP
• Multiclass classification and object detection

Data Interfaces

• 1 x USB 3.0
• 1 x Ethernet
– 10/100/1000 Base-T
• 4 x Serial RS422
• 1 x CAN bus
• 1 x IRIG DCLS input
• 8 x GPIO (4 inputs, 4 outputs)

Power

• 12VDC +/-5%
• <20W

Expansion

• 1 x M.2 slot (Key M)

Mechanical

• Dimensions 100 x 100 x 20mm (3.94” x 3.94” x 0.8”)

Environmental

• Temperature
– Operating -25C to +71C
– Non-operating -40C to +85C
• Humidity

– 5% to 95% non-condensing
– Optional conformal coating available
• Shock

– 30g, 11ms

Architecture

The CHARM-100NX uses a FPGA for high speed, low latency video interfacing and processing combined with the power of the Xavier NX embedded processing which includes the following resources:
• Hexa core ARM CPU
• 384 CUDA core + 48 Tensor core GPU
• Video accelerator for video encode/decode The Xavier NX provides more than 3 times the AI processing performance of the earlier Jetson TX2 processor and processes two concurrent streams of standard definition or high definition video, selected from the multiple video inputs. The output video is genlocked to the input video and is comprised of low latency video from the selected input combined with processed video and graphics from the Xavier.

Applications

• Security and surveillance
• UAV & UGV
• Manned vehicles

Enclosure

A rugged enclosure is available for the CHARM-100NX. The enclosure includes an input power supply which allows the CHARM-100NX to be powered directly from vehicle and aircraft power sources. Customized connector configurations are also available for specific applications.
